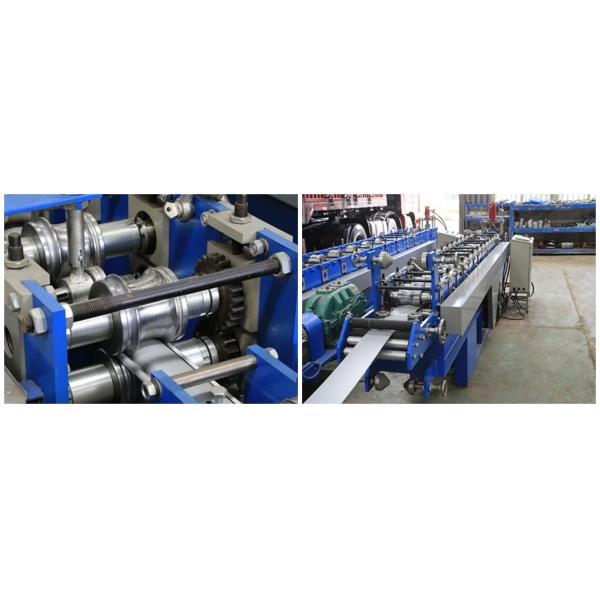

Hydraulic Cutting Steel Rolling Shutter Door Roll Forming Machine

Brand Name : YBT

Model Number : YB525825

Certification : CE ISO SGS

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 10set

Delivery Time : 45-60 days

Packaging Details : Standard export packing with each machine tied and protected in container

Name : Shutter Door Roll Forming Machine

Voltage : As Your Requirment or 380v, 60Hz, 3 phase or

Advantage : Use Widely

Warranty : 12 Months

Thickness : 0.7-1.2mm

Material : PI & PPGI

Contact Now

Hydraulic Cutting Steel Rolling Shutter Door Roll Forming Machine

Our products are widely used in various fields: industrial factory, civilian building, warehouse, easy steel building, manufacturing, construction and have features such as nice appearance and durable.The colored steel tiles produced by this machine look beautiful ,elegant and noble.They are widely used as the roof of garden,factory,hotel,exhibition center and villa,etc.

Specification of Ceiling Silo Roll Forming Machine

Material Spec	colored steel sheet, galvanized steel sheet
Input width	as customized
Effective width	according to final drawing
Roller station	as your profile
Coil Thickness	0.7-1.2mm
Forming speed	10-15m/min
Main motor power	4kw
Hydraulic power	4kw
Roller material	high grade No.45 forged steel, with 0.05mm plated coating
Shaft material	45# high grade steel,diameter 75mm
PLC	Delta brand

Machine list:

Number	Machine list	Number
1	5 tons hydraulic decoiler	1 set
2	Feeding&leveling device	1 set
3	Gear box drive system	1 set
4	Main forming machine	1 set
5	Curving device	1 set
6	Hydraulic Cutting device	1 set
7	Auto stacker 6 meters	1 set
8	PLC control system	1 set
9	Hydraulic station	1 set

Cutting Device	Roller System
1. Cutting press is 20 tons	1. Material: high grade NO.45 forged steel
2. Blade and mold material:GCR12steel with quenched treated 60-62ºC. It can decide cut panel dimension according to the hydraulic drive and PLC computer control system.	2. Roller station: 11-16(depends on final design) 3. Thickness of feeding material:0.7-1.2mm.

Hydraulic Cutting Steel Rolling Shutter Door Roll Forming Machine

Technological process:

Hydraulic Cutting Steel Rolling Shutter Door Roll Forming Machine

Application:

Hydraulic Cutting Steel Rolling Shutter Door Roll Forming Machine

Features:

1 . The equipment control is PLC control, and multiple safety protection is set during normal production.
2 . The bed is welded with steel plates. It is also tempered to eliminate internal stress and avoid deformation of the fuselage.
3 . The forming frame is cast iron structure and tempered. High strength and long service life.
